Anderol 500
ISO VG 100 SYNTHETIC COMPRESSOR OIL

SYNTHETIC COMPRESSOR OIL (ISO 100)

Anderol 500 General Information:
ANDEROL 500 is an ISO 100 diester-based lubricant designed to provide high temperature and long-term
lubrication with minimal deposit formation.
ANDEROL 500 is rated H2 for use in food processing plant applications.

Anderol 500 Typical Properties:

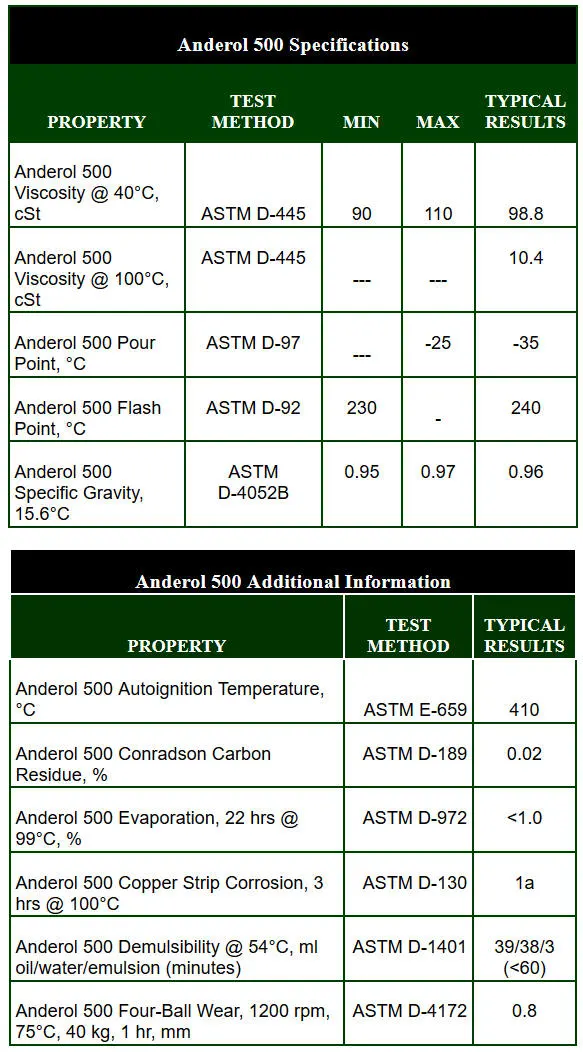

Anderol 500 Specifications

PROPERTY

TEST METHOD

MIN

MAX

TYPICAL RESULTS

Anderol 500 Viscosity @ 40°C, cSt

ASTM D-445

90

110

98.8

Anderol 500 Viscosity @ 100°C, cSt

ASTM D-445

---

---

10.4

Anderol 500 Pour Point, °C

ASTM D-97

---

-25

-35

Anderol 500 Flash Point, °C

ASTM D-92

230

-

240

Anderol 500 Specific Gravity, 15.6°C

ASTM D-4052B

0.95

0.97

0.96

Anderol 500 Additional Information

PROPERTY

TEST METHOD

TYPICAL RESULTS

Anderol 500 Autoignition Temperature, °C

ASTM E-659

410

Anderol 500 Conradson Carbon Residue, %

ASTM D-189

0.02

Anderol 500 Evaporation, 22 hrs @ 99°C, %

ASTM D-972

<1.0

Anderol 500 Copper Strip Corrosion, 3 hrs @ 100°C

ASTM D-130

1a

Anderol 500 Demulsibility @ 54°C, ml oil/water/emulsion (minutes)

ASTM D-1401

39/38/3 (<60)

Anderol 500 Four-Ball Wear, 1200 rpm, 75°C, 40 kg, 1 hr, mm

ASTM D-4172

0.8

Anderol 500 Applications

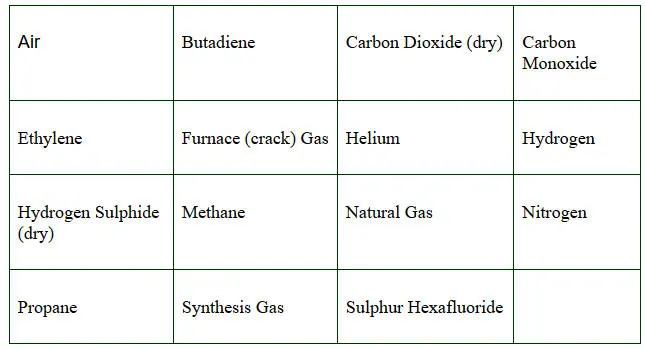

Cylinder and crankcase lubrication for reciprocating compressors and vacuum pumps for the following gases:

Air

Butadiene

Carbon Dioxide (dry)

Carbon Monoxide

Ethylene

Furnace (crack) Gas

Helium

Hydrogen

Hydrogen Sulphide (dry)

Methane

Natural Gas

Nitrogen

Propane

Synthesis Gas

Sulphur Hexafluoride

ANDEROL 500 may also be considered for other applications requiring an oxidation resistant lubricant.
Nominal Operating Range is -15°C to 210°C (5°F to 410°F).

ANDEROL 500 Advantages

· Fewer oil changes
· Lower oil consumption
· Reduces compressor maintenance
· Eliminates lacquering and deposits
· Greatly reduces fire and explosion hazard
· Reduces energy consumption
· Separates water condensate rapidly

ANDEROL 500 Recommended - Viton, High Nitrile Buna N, Teflon, Epoxy Paint, Oil-Resistant Alkyd, Nylon, Delrin, Celcon, PBT

ANDEROL 500 NOT Recommended - Neoprene, SBR Rubber, Low Nitrile Buna N, Acrylic Paint, Lacquer, Polystyrene, PVC, ABS
